CUSTOM SPRING MANUFACTURER • HOUSTON, TX
YOUR SUCCESS
IS OUR STANDARD.
Precision springs, fast lead times, and service you can count on - built for energy, oilfield, and industrial applications.
🔒 Your information is 100% Secure
*Subject to material availability. Expedite available on request.
Quote Information
What We Need to Manufacture Your Spring.
The more detail you can share, the faster and more accurate your quote. If you don't have all of it, that's fine — see Design Help below.

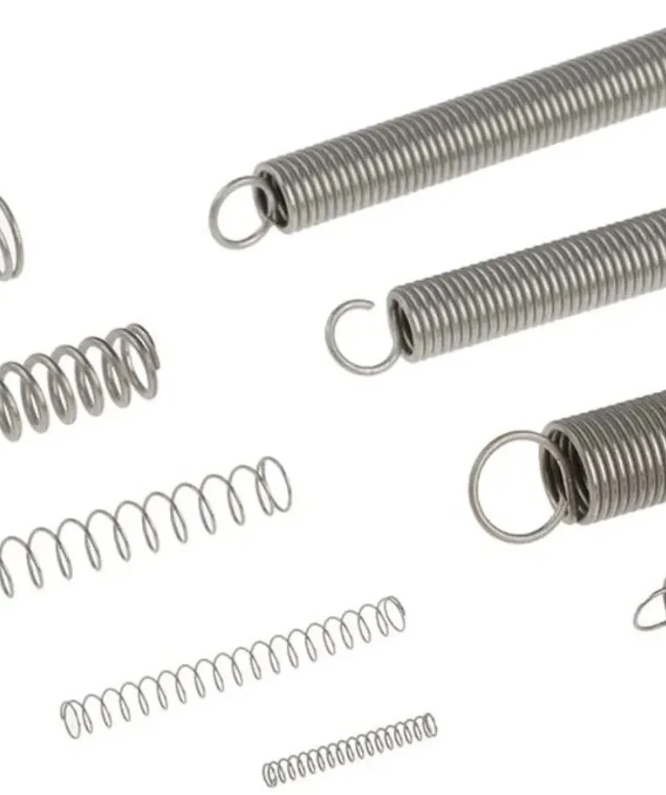

- Wire diameter (d)
- Outside or mean diameter (OD / D)
- Free length (L₀)
- Total & active coils (Nₜ, Nₐ)
- End Type — Closed Only, Closed & Ground, Open Ends
- Direction of wind — RH or LH
- Load at working height or rate (lb/in or N/mm)
- Material & finish
- Wire diameter (d)
- Outside or mean diameter (OD / D)
- Free length inside hooks (L₀)
- Hook style — machine, crossover, side, extended, custom
- Initial tension (lb or N)
- Load at extended length or spring rate
- Direction of wind
- Material & finish

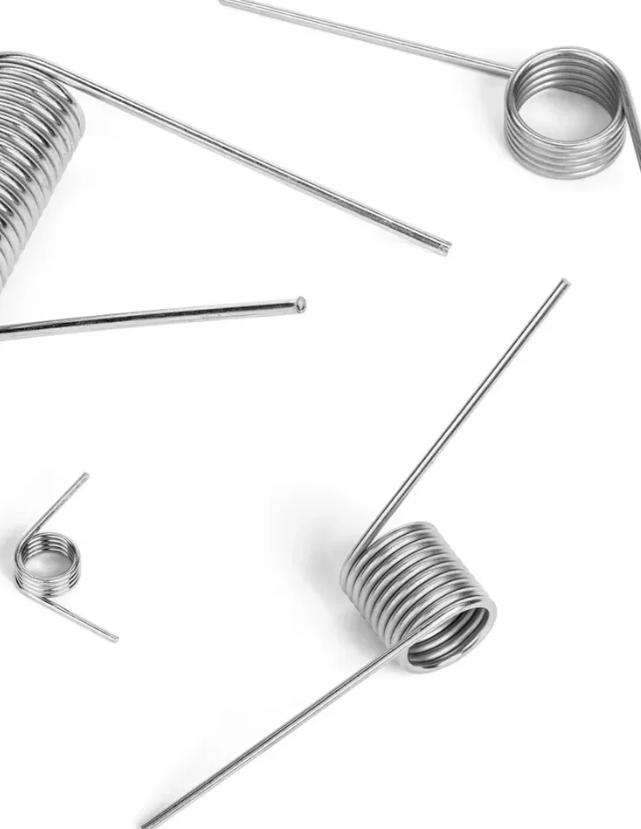

- Wire diameter (d)
- Mean diameter (D) or mandrel size
- Number of coils
- Leg lengths & configurations
- Free angle / loaded angle between legs
- Torque at deflection (in-lb or N·m)
- Direction of wind — must match application

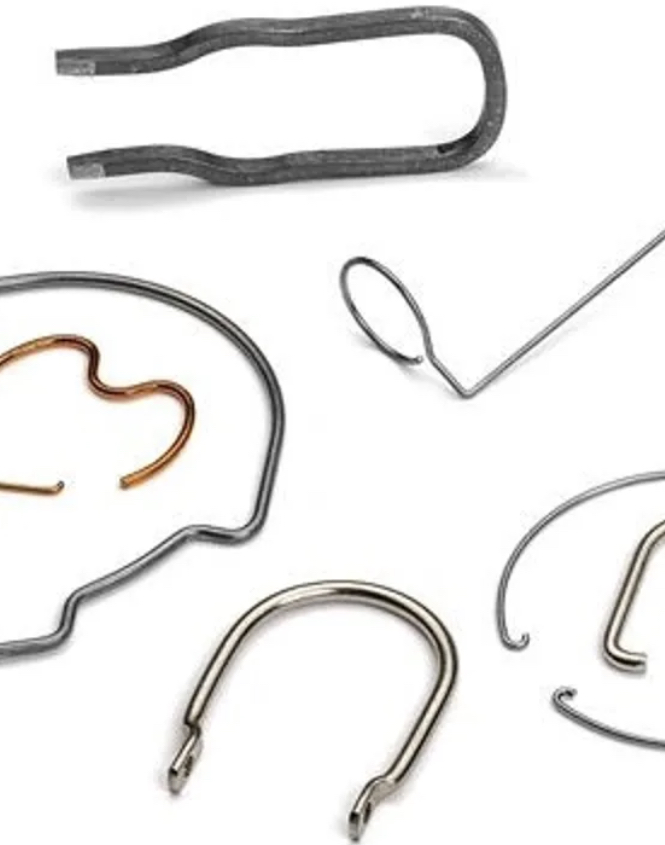

- Wire diameter & material
- Overall dimensions with tolerances
- Bend radii & angles
- 2D drawing or 3D model (PDF, STEP, IGES, DXF)
- Critical features — fit-to-mate, hook orientation
- Quantity & release schedule
- Finish — plating, passivation, coating
the right spring.
- Application context — what the part does and what it mates with
- Working envelope — available bore, hole, or shaft dimensions
- Load or deflection target — even rough values help
- Operating environment — temperature, media, cycles, corrosion
- A photo or a sample — of the part you're replacing
If you can ship us a physical sample, we can reverse engineer it, document the geometry, and reproduce it with documented tolerances.
- 1. Print, sketch, or photo
- 2. Quantity (and any release schedule)
- 3. Material preference or environment
- 4. Target lead time
- 5. Application notes (load, fit, mating part)
No drawing? Send a sample. No sample? Send a photo with a ruler.
Materials & Finishes
Common Materials We Run.
Material selection drives load capacity, fatigue life, and corrosion behavior. We help match material and finish to the application and budget.
Music wire (ASTM A228), hard-drawn (A227), oil tempered (A229), chrome silicon (A401), chrome vanadium (A232).
302/304 (A313), 316, 17-7 PH for elevated temperature and corrosive service.
Inconel® X-750, Inconel® 718, Monel®, Hastelloy® for downhole, high-temp, and chemical environments.
Phosphor bronze, beryllium copper, brass — for conductivity and non-magnetic needs.
Passivation, zinc plating, black oxide, powder coat, e-coat, shot peening, and stress relief.
0.012" – 0.625" wire diameter capacity, with round, square, and shaped wire available.
Don't see your material? Ask — we source to spec.
Built for Buyers Who Need Parts That Show Up and Work.
We started Integrity Spring & Fab in 2021 because Houston-area engineers and purchasing teams kept running into the same problem: long lead times, hard-to-reach suppliers, and parts that didn't quite fit. Our promise is the opposite — easy communication, fast response, and parts built for your application.
We can provide FAIR samples when required, and our quality process includes first article inspection and final inspection before parts ship.
